1. Product Applications
Automotive Painting: Mixing and spraying basecoats, clearcoats, and primers in body shops.
Precision Refinishing: Small area touch-ups and detail work where color accuracy is vital.
Aviation & Marine: Applying high-performance coatings to curved or irregular surfaces (360° spraying).

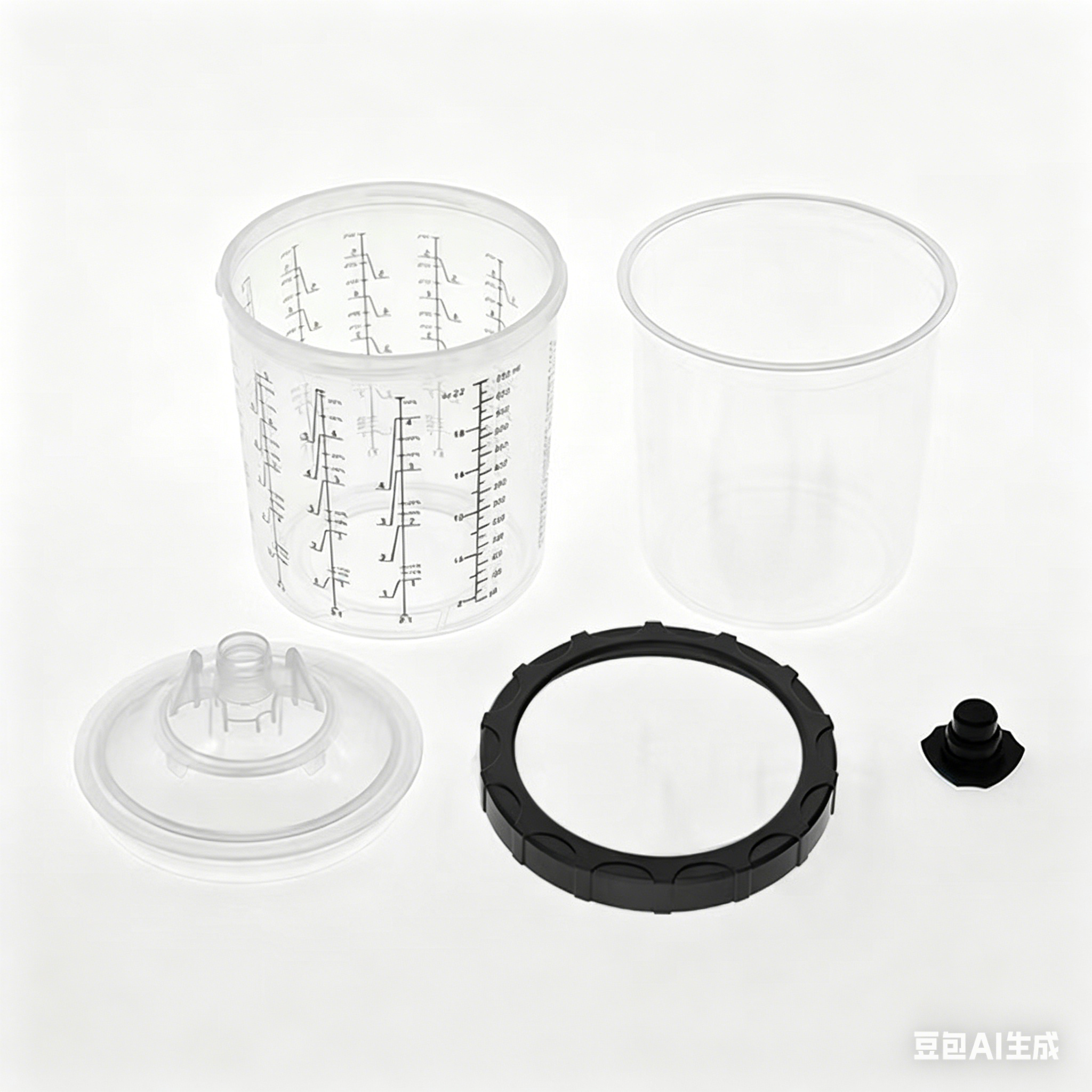

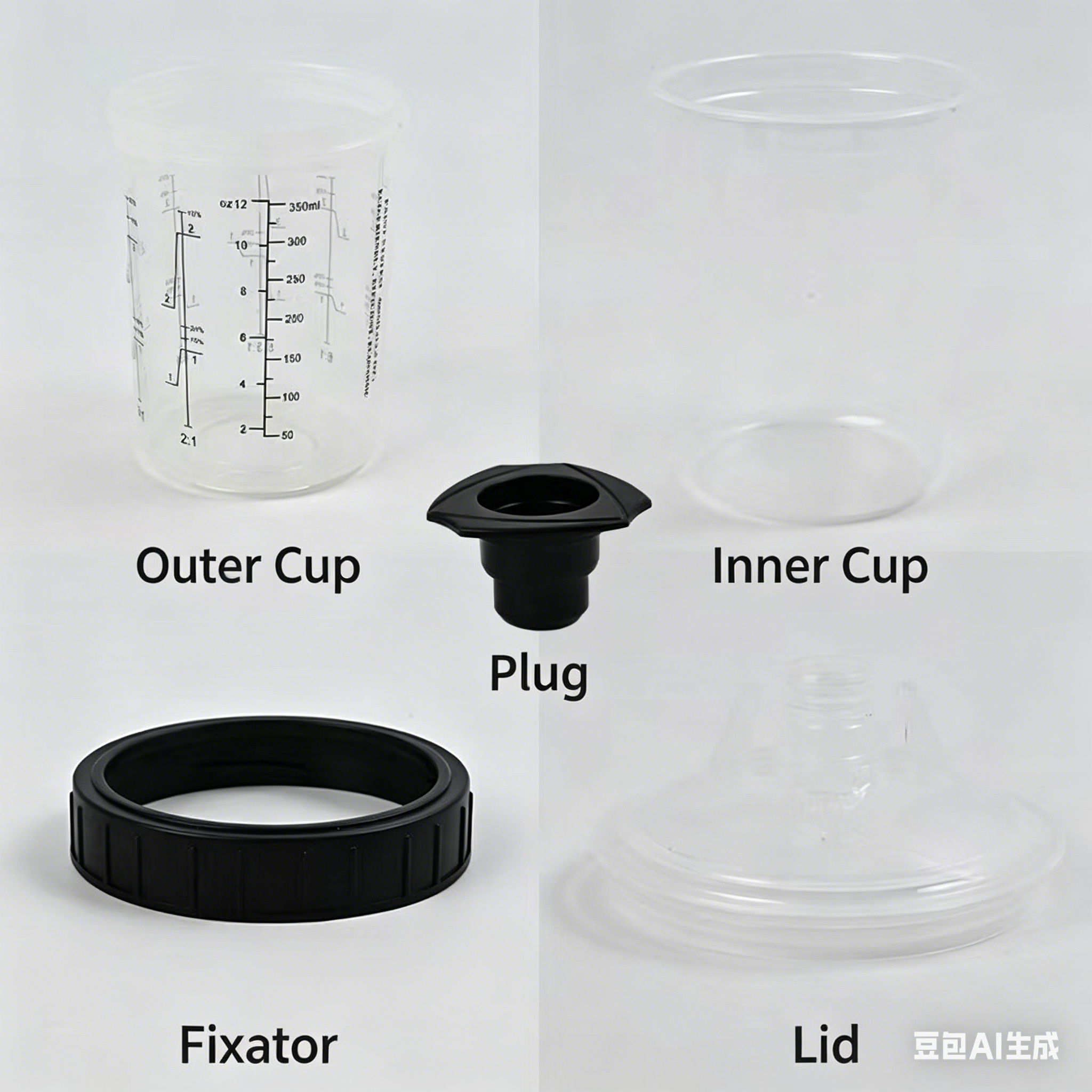

2. Product Strucures

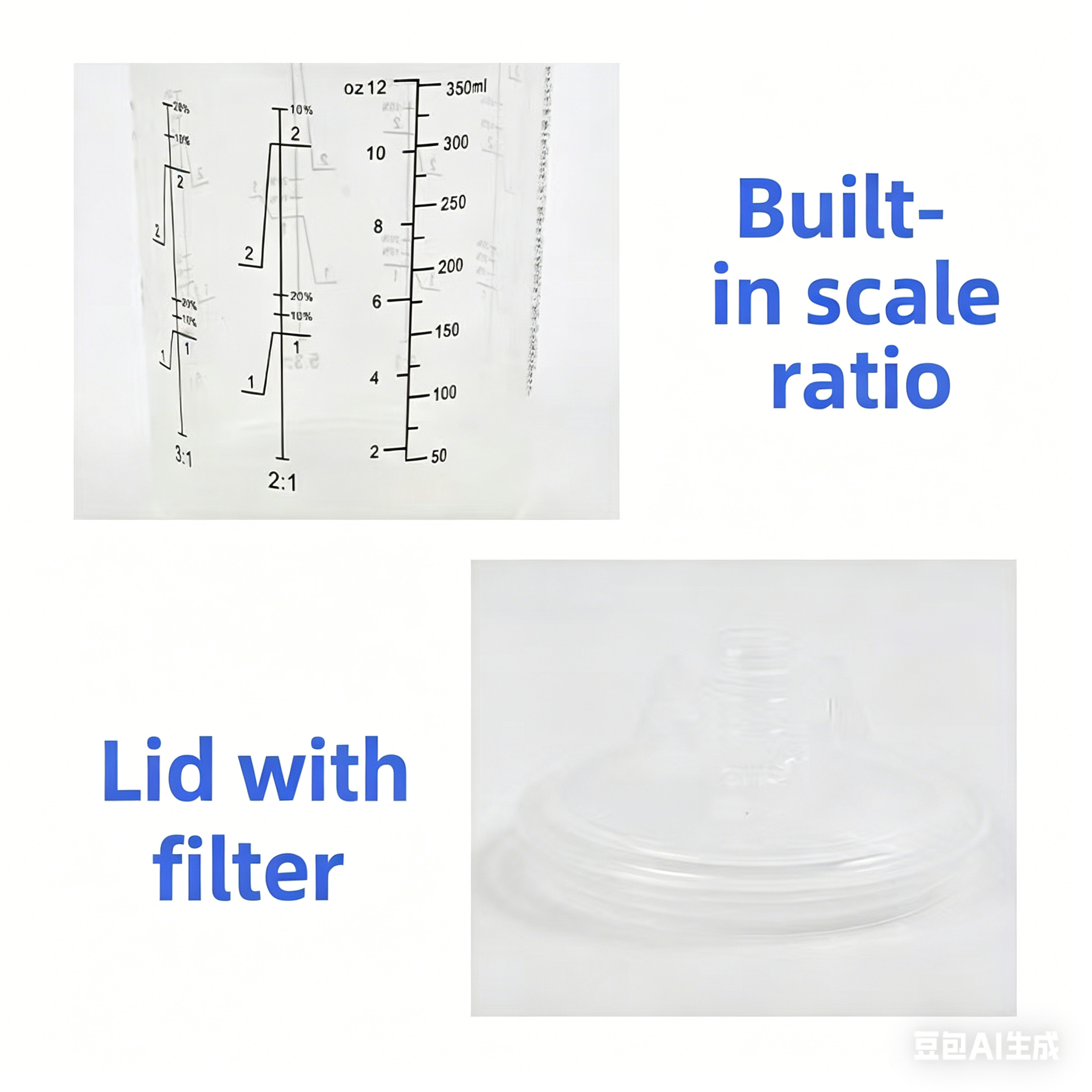

- Hard Outer Cup:Features high-precision, molded graduation scales for various mixing ratios
- Disposable Inner Liner: Fits inside the outer cup to hold the paint; its vacuum-collapsing design ensures maximum paint utilization with zero waste.
- Disposable Lid with Filter: Equipped with a built-in precision mesh filter (typically 120um or 125um ) to strain paint instantly during application for a flawless finish.
- Black Retaining Ring: Secures the lid firmly to the outer cup, creating a leak-proof seal that maintains system integrity during high-pressure spraying.
- Sealing Plug: Used to temporarily seal the lid outlet, protecting unused paint from contamination or premature drying for short-term storage.
3. Technical Specifications (AF-15)
| ITEM | Specification |

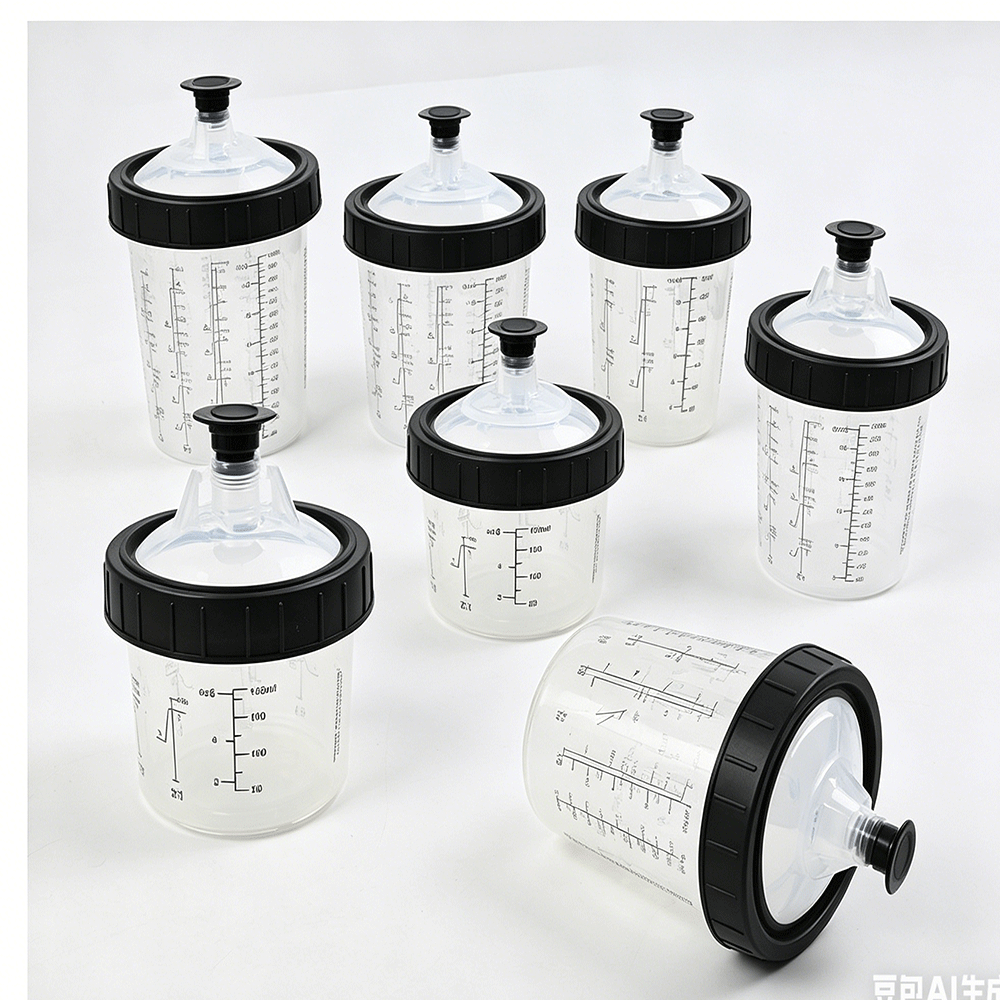

| Available Sizes | 200ML-AT1501, 400ML-AT-1502, 600ML-AT-1503, 800ML-AT-1504 |
| Material | Solvent-Resistant Polypropylene (PP) |
| Filter Mesh | 125MIC / 200MIC |
| Temperature Resistance | UP to 60°C-80°C |

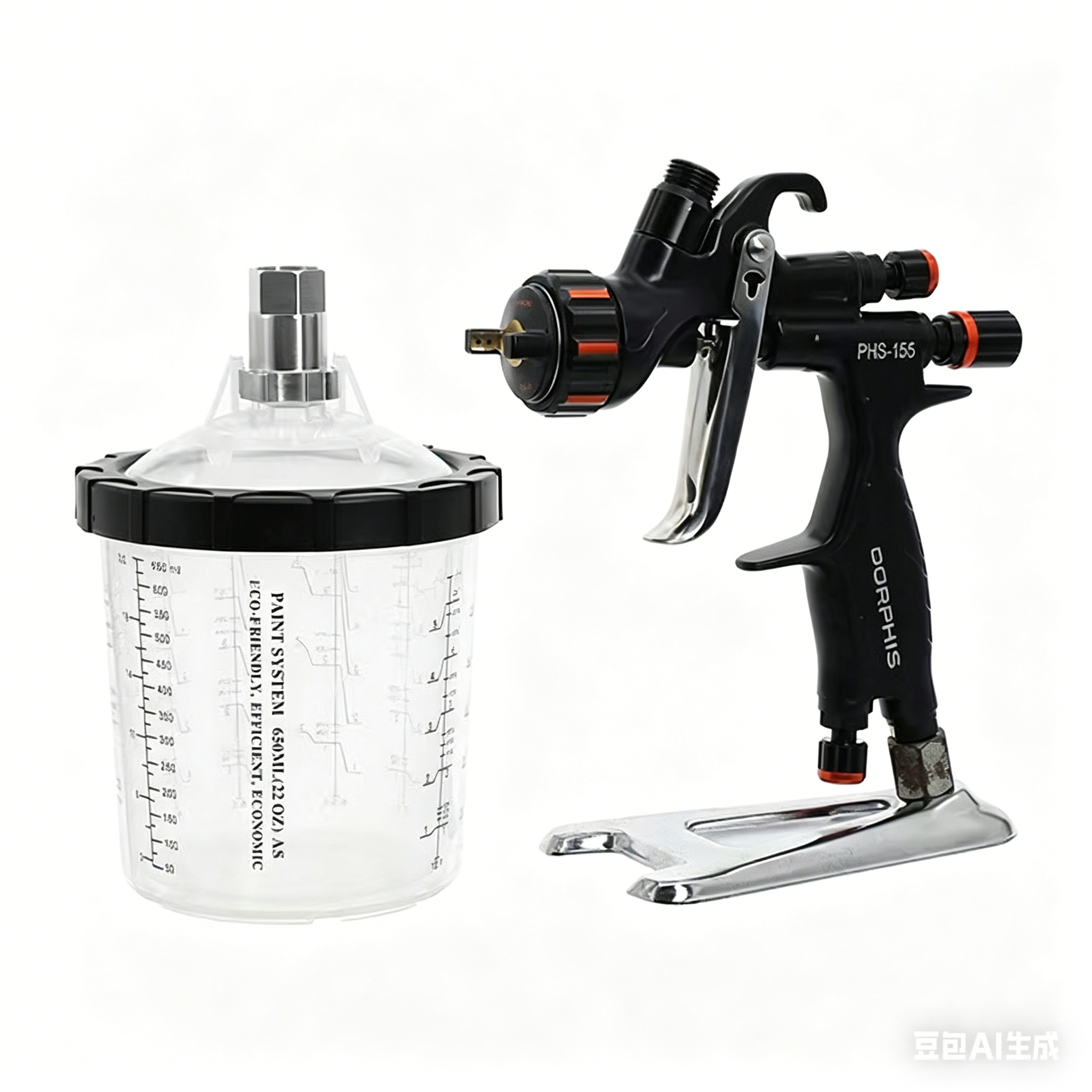

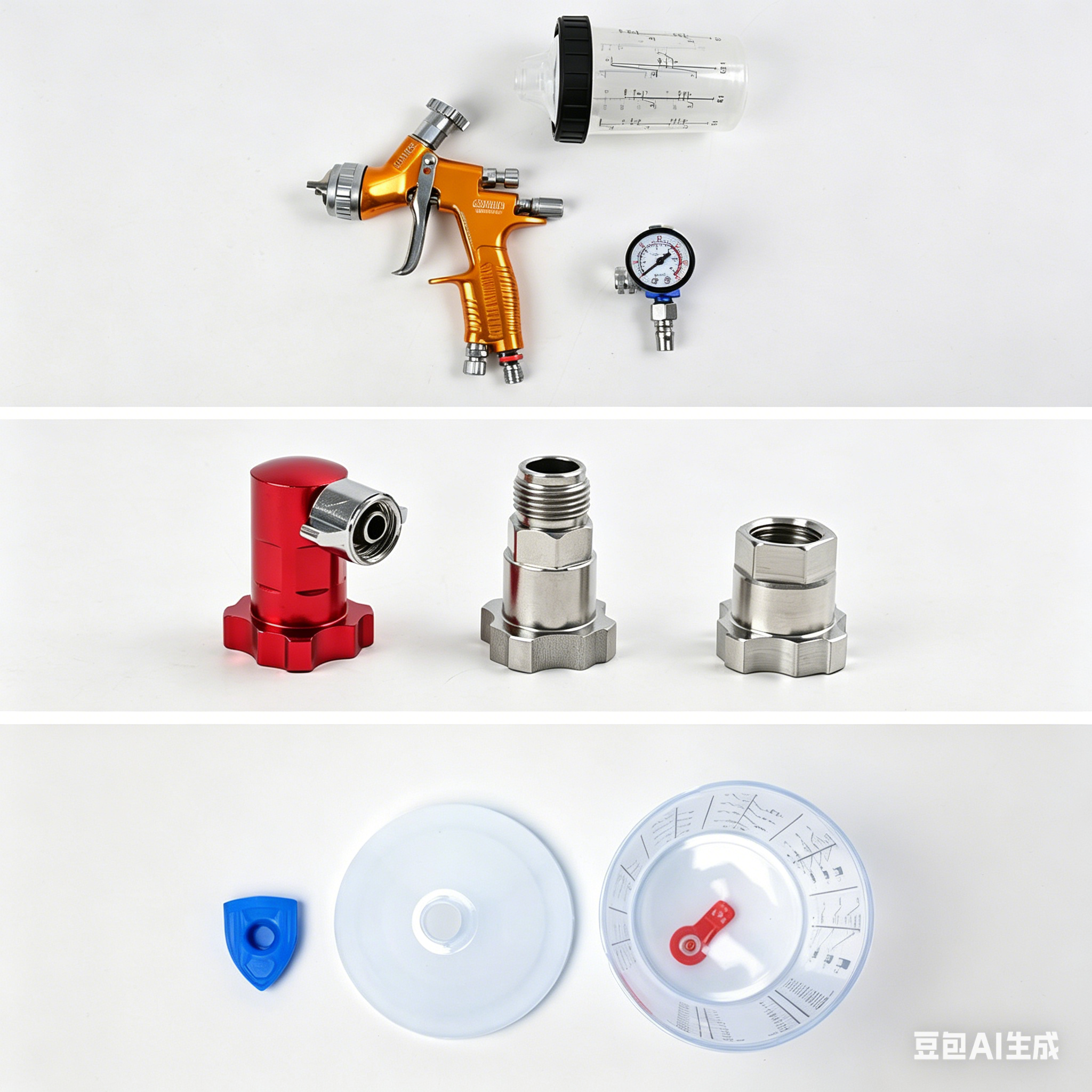

| Compatibility | Compatible with major spray guns (SATA, Iwata, Devilbiss) via adapters |
4. MOQ & PACKAGE
| ONE SET | 50PCS -Disposable Inner Liner 50PCS -Disposable Lid with Filter 20PCS -Sealing Plug 1PCS -Hard Outer Cup |
